산업용 AC-DC 컨버터

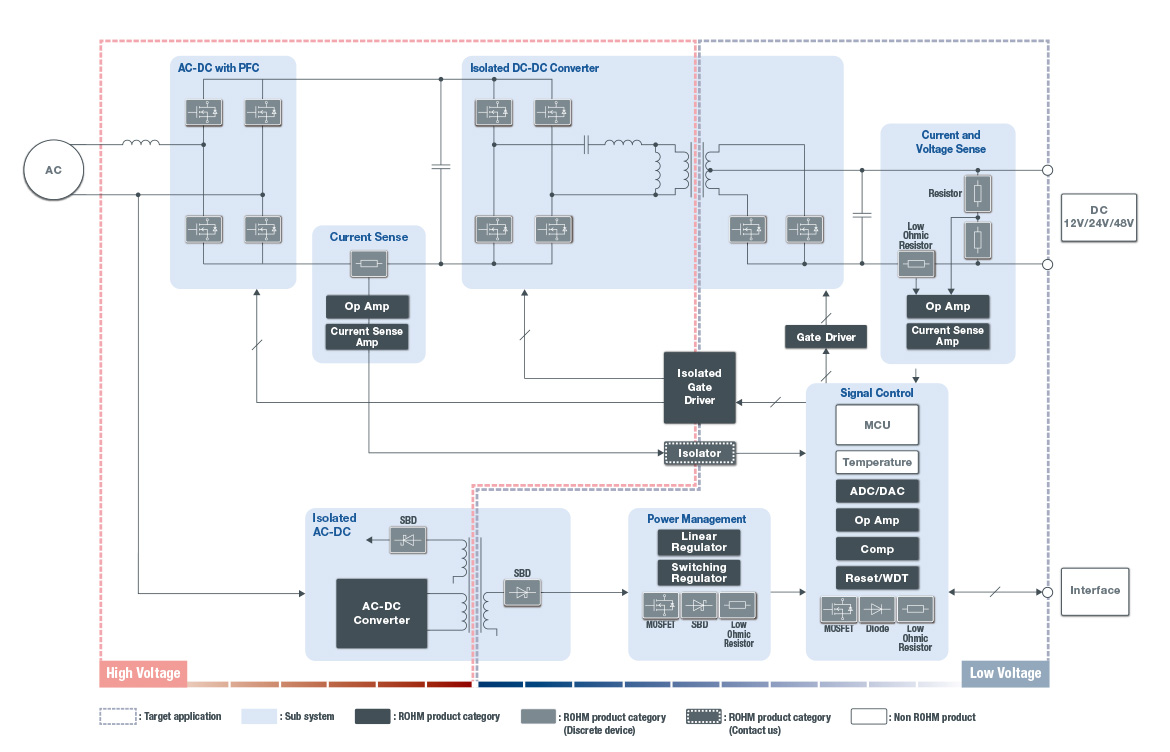

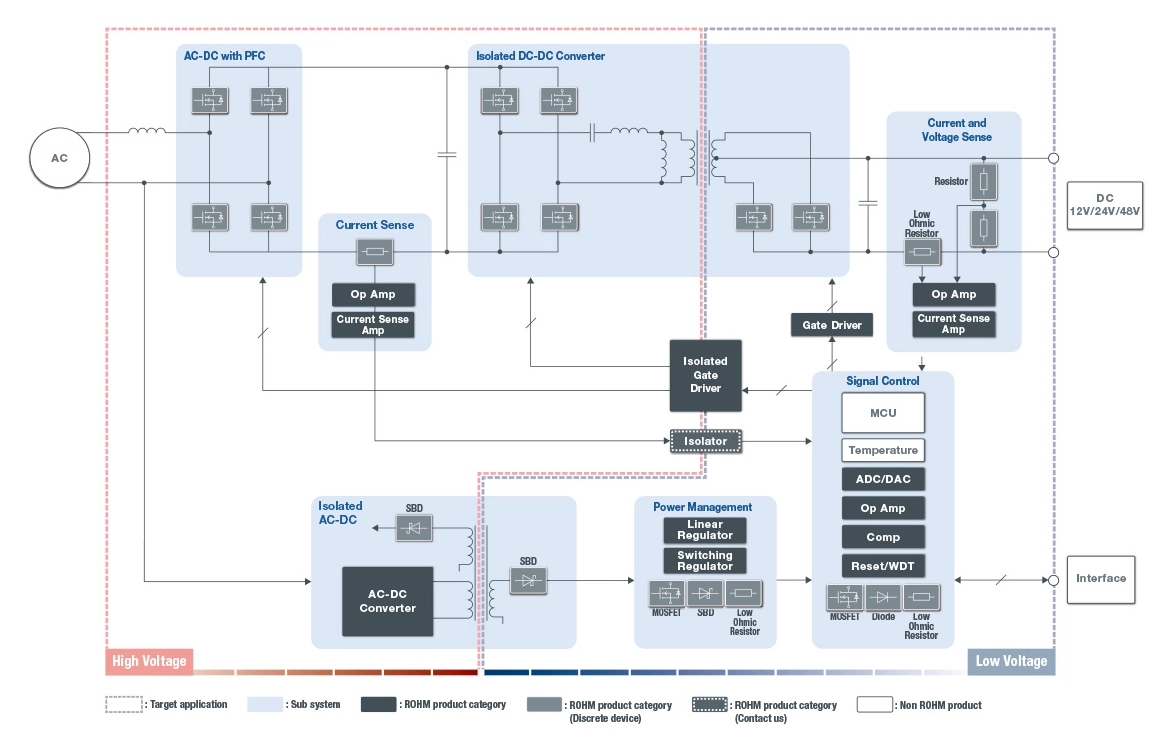

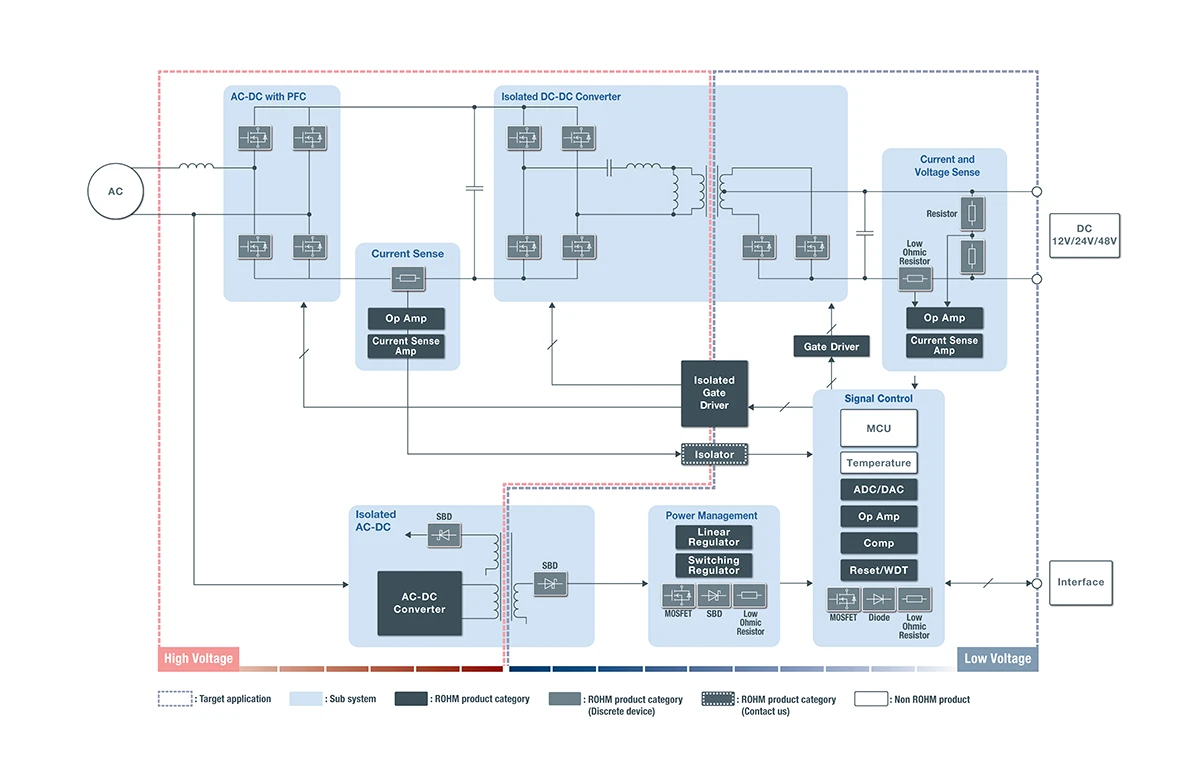

산업용 AC-DC 컨버터는 메인 전원 회로와 더불어 각종 제어 시스템용으로 전원전압을 제공하는 보조 전원 회로도 요구되며, 회로 구성 (토폴로지)도 다양합니다. 로옴은 이러한 다양한 토폴로지의 전원 장치용으로 반도체 소자 및 IC, 모듈 제품의 풍부한 라인업을 구비하고 있습니다. 이에 따라, 1차측 · 2차측, 절연 · 비절연, 디스크리트 구성 · IC 채용 구성 등 각각에 대해 최적의 퍼포먼스를 실현하는 솔루션을 제공할 수 있습니다.

Topology Selection

When designing an electronic circuit, especially power system circuits, it is necessary to select a circuit configuration (topology) that meets the required specifications because input voltage, output voltage, power, isolation, etc. vary depending on the application. The selection of the most suitable components also differs depending on the topology. If the wrong components are selected, the required specifications cannot be met and the circuit design must be redone. The topology selection page provided by ROHM guides you through the selection of the best device for different topologies.

레퍼런스 디자인

로옴의 IC 제품, 디스크리트 제품을 조합하여, 다양한 과제를 해결하는 솔루션 보드를 제공하고 있습니다. 시스템 레벨의 평가 결과 및 설계 데이터를 레퍼런스 디자인으로서 제공함으로써, 고객의 개발 공수 삭감에 기여합니다.

레퍼런스 디자인


・Reference Designs
・Isolation Fly-back Converter Quasi-Resonant method Output 24W 24V Reference Design
・Built-in SiC MOSFET Isolated Fly-back Converter QR method Output 48W 24V Reference Design
・Reference Board forLow-side Current Sensing Circuit Reference Design

디자인 모델

파워 디바이스 및 IC 제품의 회로 시뮬레이션이나 열 시뮬레이션에 필요한 각종 시뮬레이션 모델을 제공하고 있습니다.
각 제품 페이지 및 하기 링크에서 다운로드할 수 있습니다.

전제품 공통

・SPICE

디스크리트 제품만 해당

(파워 디바이스, MOSFET, 트랜지스터, 다이오드 등)
・LTspice
・Thermal
・PLECS

IC 제품만 해당

(OP Amp, 파워 매니지먼트 IC, 전원 IC 등)
・ Unencrypted SPICE (각 제품 페이지에서 다운로드 가능합니다.)
This is an unencrypted version of PSPICE, a SPICE model that can be imported into any simulator.

ROHM Solution Simulator

「ROHM Solution Simulator」는 로옴의 공식 Web 사이트 상에서 동작하는 전자 회로 시뮬레이션 툴입니다. 부품 선정 및 디바이스 단품 검증 등의 개발 초기 단계부터 시스템 레벨의 검증 단계까지 폭넓게 Web 상에서 시뮬레이션할 수 있습니다. 로옴이 제공하는 SiC 디바이스 등의 파워 디바이스 제품과 구동 IC · 전원 IC 등의 IC 제품을 실제 환경에 가까운 솔루션 회로를 통해 빠르고 간단하게 한번에 검증할 수 있으므로, 어플리케이션 개발의 대폭적인 공수 삭감에 기여합니다.
※이용 시에는 My ROHM 등록 및 로그인이 필요합니다.

ROHM Solution Simulator


동영상

ROHM SiC 파워 솔루션

로옴의 SiC 파워 디바이스와, SiC로 기기의 소형화 · 고효율화에 기여하는 솔루션을 소개합니다. SiC의 도입을 검토하실 때는, 로옴으로 문의하여 주십시오.
