PSR100ITQFC0L20

6432 (2512) size, 12W, 0.2mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)
Data Sheet 구입
PSR100ITQFC0L20

PSR100ITQFC0L20
6432 (2512) size, 12W, 0.2mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

PSR100 series is ideal for current detection under high current circuit.

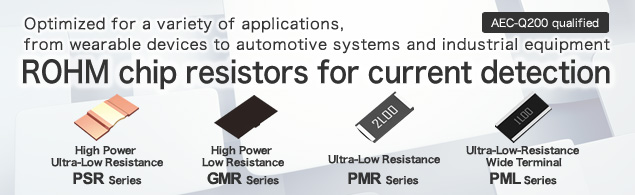

Optimized for a variety of applications, from wearable devices to automotive systems and industrial equipment

Data Sheet 구입
Data Sheet 구입

Lineup


* Fractions not supported (decimals only)

Product Detail


형명 | PSR100ITQFC0L20
상태 | 추천품
패키지 | PSR100
포장 사양 | Taping
포장 수량 | 3000
최소 포장 단위 | 3000
RoHS | Yes
장기 공급 프로그램 | 10 Years

사양 :

Automotive grade

Yes

Size[mm](inch)

6432(2512)

Rated Power[W]

12

Resistance Tolerance

F (±1%)

Resistance range[Ω]

0.2m

Temperature Coefficient[ppm/°C]

150±50

Operating Temperature[°C]

-65 to 175

Type

For current sensing

Operating Temperature (Max.)[°C]

175

Common Standard

AEC-Q200 (Automotive Grade)

Find Similar

특징 :

  • Excellent TCR characteristic
  • Convex structure
  • ROHM resistors have obtained ISO9001 / IATF16949 certification.
  • Corresponds to AEC-Q200.
