BD9E304FP4-LBZ
4.5V~36V 입력 3.0A MOSFET 내장 1ch 동기정류 강압 DC-DC 컨버터
BD9E304FP4-LBZ
4.5V~36V 입력 3.0A MOSFET 내장 1ch 동기정류 강압 DC-DC 컨버터

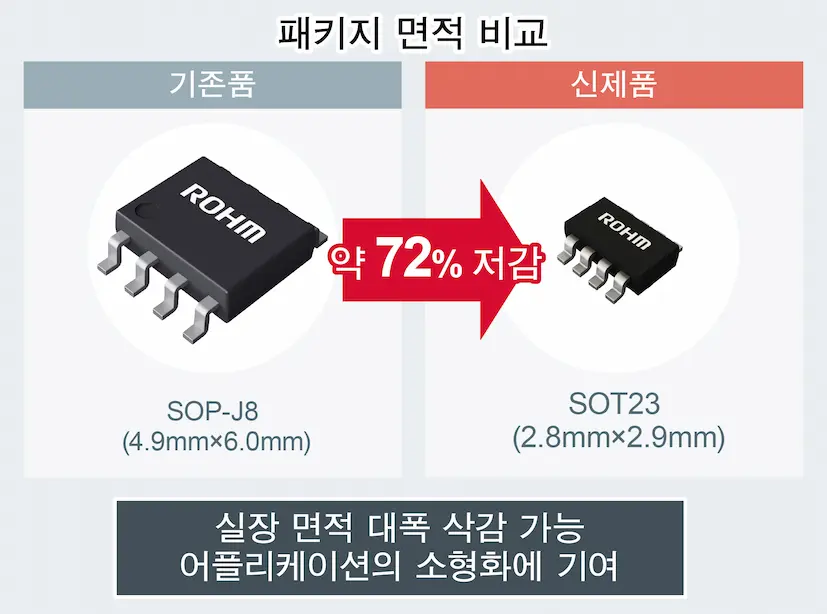

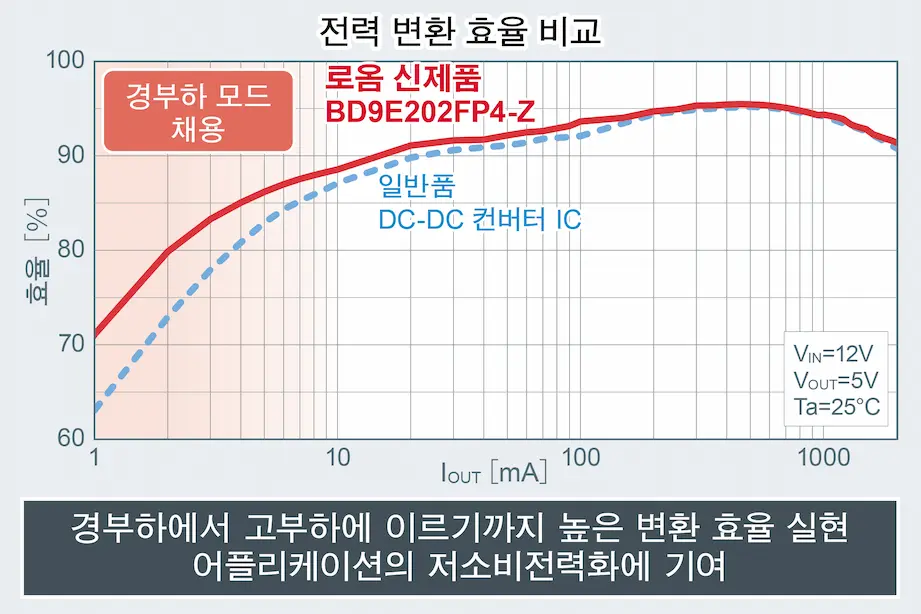

본 제품은 산업기기 시장용으로, 장기간 공급을 보증하는 제품입니다. BD9E304FP4-LBZ는 낮은 ON 저항의 파워 MOSFET를 내장한 1ch 동기정류 강압 DC-DC 컨버터입니다. 경부하 모드 제어를 통해 경부하 시의 효율이 개선되어, 대기 시 전력을 억제하고자 하는 기기에 최적입니다. 전류 모드 제어 채용으로 위상보상 설정이 용이하여, 우수한 부하 응답 성능을 실현합니다. 소형 패키지를 채용함으로써, 높은 전력 밀도를 실현하여 PCB 상의 footprint를 작게 합니다.
Product Detail
사양 :
ch
1
Integrated FET / Controller
Integrated FET
Topology
Buck
Synchronous / Nonsynchronous
Synchronous
Vin1(Min.)[V]
4.5
Vin1(Max.)[V]
36
Vout1(Min.)[V]
0.7
Vout1(Max.)[V]
28
Iout1(Max.)[A]
3
SW frequency(Max.)[MHz]
0.3
Light Load mode
Yes
EN
Yes
PGOOD
No
Operating Temperature (Min.)[°C]
-40
Operating Temperature (Max.)[°C]
85
Package Size [mm]
2.92x2.8 (t=0.95)
특징 :
- Long Time Support Product for Industrial Applications
- Single Synchronous Buck DC/DC Converter
- Light Load Mode Control
- Efficiency = 80%(@IOUT = 10mA,VIN = 32V, VOUT = 5V)
- Output Capacitor Discharge Function
- Over Voltage Protection(OVP)
- Over Current Protection(OCP)
- Short Circuit Protection(SCP)
- Thermal Shutdown Protection(TSD)
- Under Voltage Lockout Protection(UVLO)
- TSOT23-8L Package
Reference Design / Application Evaluation Kit
-
- Evaluation Board - BD9E304FP4-EVK-001
12V→1.2V, 3.0A
This EVK has been developed for ROHM’s synchronous buck DC/DC converter customers evaluating BD9E304FP4.
-
- Evaluation Board - BD9E304FP4-EVK-002
This EVK has been developed for ROHM’s synchronous buck DC/DC converter customers evaluating BD9E304FP4-LBZ and outputs 12V from 24V input voltage.
-
- Evaluation Board - BD9E304FP4-EVK-003
This EVK has been developed for ROHM’s synchronous buck DC/DC converter customers evaluating BD9E304FP4-LBZ and outputs 5V from 24V or 12V input voltage.
