UT6MA3
20V Nch+Pch 미들파워 MOSFET
UT6MA3
20V Nch+Pch 미들파워 MOSFET
UT6MA3은 스위칭 용도에 최적인 저 ON 저항 미들파워 MOSFET입니다.
Product Detail
사양 :
Package Code
DFN2020-8D
Applications
Power Supply
Number of terminal
8
Polarity
Nch+Pch
Drain-Source Voltage VDSS[V]
20
Drain Current ID[A]
5.5
RDS(on)[Ω] VGS=2.5V(Typ)
0.045
RDS(on)[Ω] VGS=4.5V(Typ)
0.03
RDS(on)[Ω] VGS=Drive (Typ)
0.045
Total gate charge Qg[nC]
4
Power Dissipation (PD)[W]
2
Drive Voltage[V]
2.5
Mounting Style
Surface mount
Storage Temperature (Min)[℃]
-55
Storage Temperature (Max)[℃]
150
Package Size [mm]
2.0x2.0 (t=0.65)
특징 :
- Low on-resistance.
- Small Surface Mount Package.
- Pb-free lead plating; RoHS compliant.
- Halogen Free.

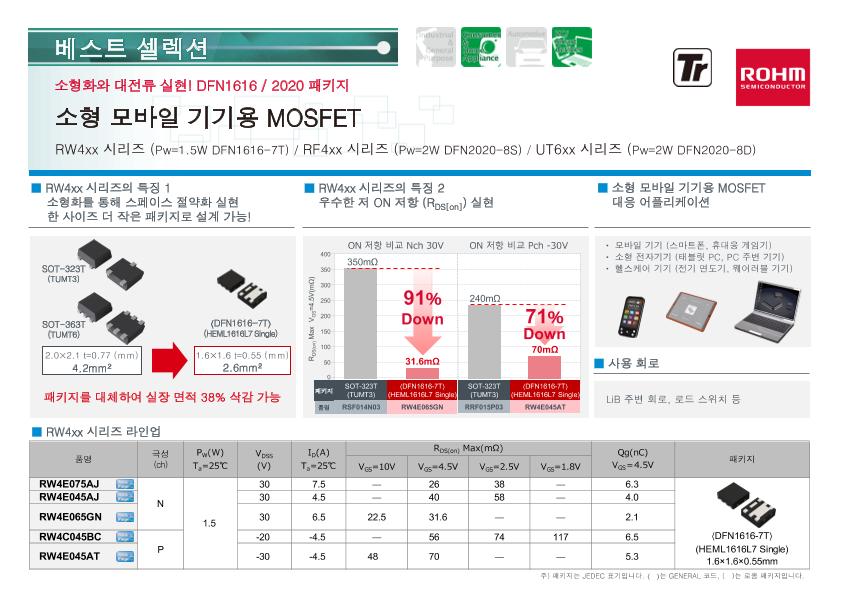

Videos & Catalogs
